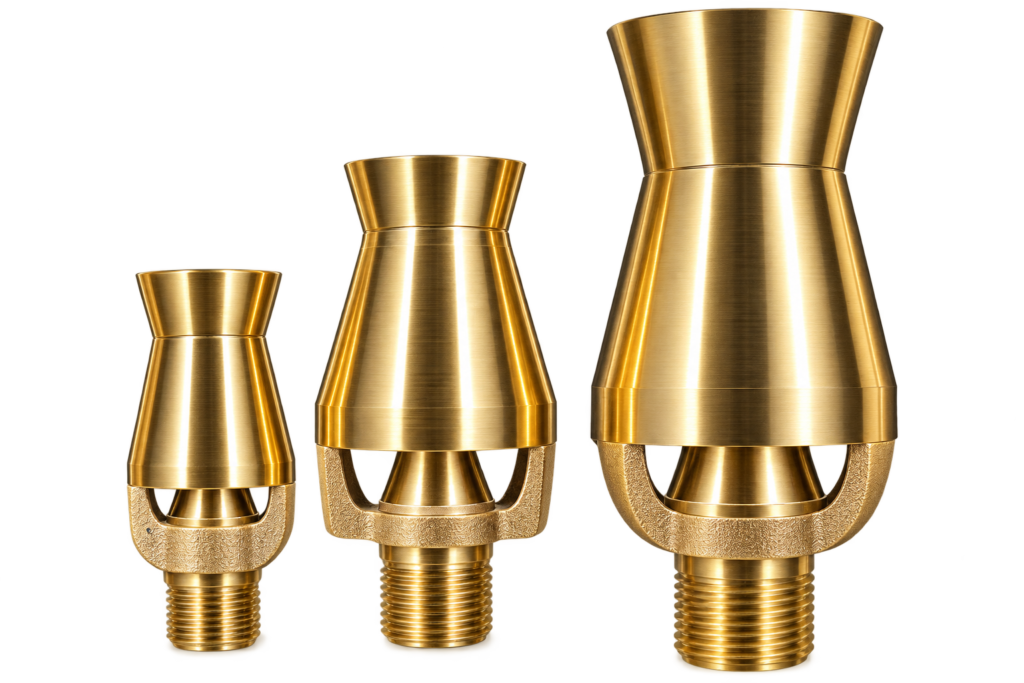

Cascade Nozzles

Thread Size	Spray Height	Spray Dia	Req. Flow	Req. Head
1/2″	2ft	0.75ft	39 LPM	42 ft
	3ft	1.0ft	45 LPM	52 ft
	4ft	1.4ft	52 LPM	62 ft
	5ft	1.75ft	60 LPM	72 ft
3/4″	2ft	0.75ft	68 LPM	30 ft
	3ft	1.0ft	75 LPM	34 ft
	4ft	1.4ft	82 LPM	43 ft
	5ft	1.75ft	90 LPM	51 ft
	6ft	2ft	99 LPM	61 ft
	8ft	2.8ft	114 LPM	77 ft
	10ft	3.5ft	128 LPM	83 ft
1″	2ft	0.75ft	89 LPM	22 ft
	3ft	1.0ft	100 LPM	25 ft
	4ft	1.4ft	112 LPM	28 ft
	5ft	1.75ft	120 LPM	31 ft
	6ft	2ft	125 LPM	40 ft
	8ft	2.8ft	141 LPM	54 ft
	10ft	3.5ft	156 LPM	65 ft
1-1/2″	2ft	0.75ft	103 LPM	8 ft
	3ft	1.0ft	121 LPM	11 ft
	4ft	1.4ft	135 LPM	13 ft
	5ft	1.75ft	146 LPM	17 ft
	6ft	2ft	165 LPM	20 ft
	8ft	2.8ft	180 LPM	25 ft
	10ft	3.5ft	212 LPM	30 ft
	15ft	5.25ft	261 LPM	44 ft
	20ft	7ft	297 LPM	57 ft

Note: Above mentioned spray heights, heads & flows are max.
