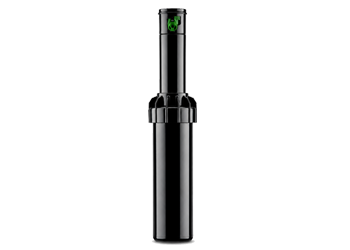

Hunter SRM-04

Operating Specifications

Radius: 4.3 to 10.4 m

Arc: 40° to 360°

Operating Pressure: 1.4 to 7.0 bar; 140 to 700 kPa

Precipitation Rate: 15 mm/hr

Flow: 0.08 to 1.0 m3/hr; 1.4 to 16.7 l/min

Nozzle	Pressure	Radius	Flow	Preceip mm/hr
mm	BAR	m	LPM	■	▲
0.5	1.7	4.3	1.4	9	11
	2.0	4.3	1.6	10	12
	2.5	4.6	1.8	10	12
	3.0	4.6	2.0	12	13
	3.5	4.9	2.2	11	13
	3.8	4.9	2.3	12	14
0.75	1.7	4.3	2.2	14	17
	2.0	4.6	2.4	14	16
	2.5	4.9	2.7	13	15
	3.0	5.2	3.0	13	15
	3.5	5.2	3.2	14	17
	3.8	5.5	3.4	13	15
1.0	1.7	5.2	3.0	13	15
	2.0	5.5	3.2	13	15
	2.5	5.5	3.5	14	16
	3.0	5.8	3.8	14	16
	3.5	5.8	4.1	15	17
	3.8	6.1	4.2	14	16
1.5	1.7	6.1	4.5	15	17
	2.0	6.4	4.8	14	16
	2.5	6.4	5.4	16	18
	3.0	6.7	6.0	16	18
	3.5	6.7	6.5	17	20
	3.8	7.0	6.7	16	19
2.0	1.7	7.0	5.6	14	16
	2.0	7.3	6.2	14	16
	2.5	7.3	7.1	16	18
	3.0	7.6	8.0	16	19
	3.5	7.6	8.8	18	21
	3.8	7.9	9.3	18	20
2.5	1.7	7.9	7.6	15	17
	2.0	8.2	8.1	14	17
	2.5	8.2	9.0	14	17
	3.0	8.5	9.8	16	19
	3.5	8.5	10.5	17	20
	3.8	8.8	10.9	17	19
3.0	8.8	8.5	8.5	13	15
	2.0	9.1	9.3	13	15
	2.5	9.1	10.6	15	18
	3.0	9.4	12	16	19
	3.5	9.4	13.1	18	20
	3.8	9.8	13.7	17	20
4.0	1.7	9.8	13.3	17	19
	2.0	10.1	13.8	16	19
	2.5	10.1	14.8	18	20
	3.0	10.4	15.7	17	20
	3.5	10.4	16.3	18	21
	3.8	10.7	16.7	18	20
