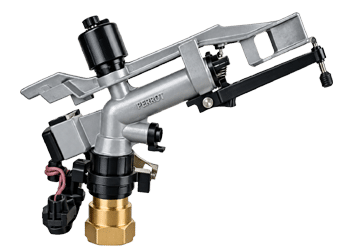

Impact Raingun 1-¼”
| Name | Impact Sprinkler 1-¼" |
|---|---|
| Material | Aluminum Alloy, Copper, Stainless Steel |
| Thread Size | 1.25” Female Thread |
Performance Chart
| Nozzle | Pressure | Radius | Flow |
|---|---|---|---|
| mm | BAR | m | LPM |
| 8 x 4 | 1.5 | 16.5 | 62 |
| 2.0 | 17.5 | 70 | |
| 3.0 | 19.5 | 87 | |
| 4.0 | 21.0 | 100 | |
| 9 x 4 | 1.5 | 17.0 | 75 |
| 2.0 | 18.0 | 88 | |
| 3.0 | 20.0 | 107 | |
| 4.0 | 21.5 | 123 | |
| 10 x 4 | 2.0 | 19.0 | 107 |
| 3.0 | 21.0 | 130 | |
| 4.0 | 22.5 | 150 | |
| 5.0 | 23.5 | 170 | |
| 12 x 4 | 2.0 | 21.0 | 148 |
| 3.0 | 23.5 | 182 | |
| 4.0 | 26.0 | 210 | |
| 5.0 | 28.0 | 237 | |
| 14 x 4 | 2.0 | 22.5 | 197 |
| 3.0 | 24.0 | 240 | |
| 4.0 | 27.0 | 278 | |
| 5.0 | 29.0 | 310 |
