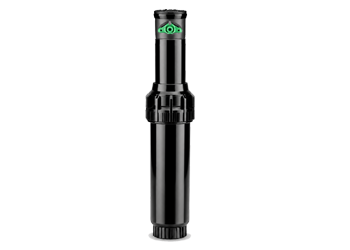

Features

• Patented Top Arc Set – Allows for wet or dry adjustment in seconds

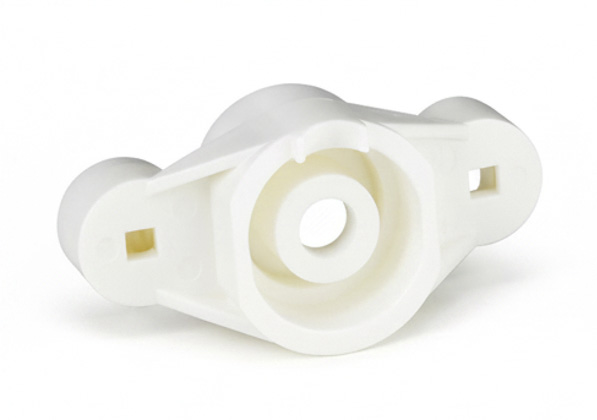

• Triple Nozzle Configuration – Ensures even distribution of water
• Arc adjustment from 40° to a continuous 360°
• Top Arc Set Degree Markings – Indicates the current watering pattern and simplifies the arc set adjustment
• Arc Memory Clutch – Prevents internal gear damage and returns the rotor to its prior setting automatically if the nozzle turret is forced past the stop
• Patented Reversing Mechanism – Assures continuous reverse and return Heavy Duty Rubber Cover and Mud Guard – Protects against physical injury and allows sprinkler to be installed below grade
• Factory Installed Check Valve – Prevents low head drainage

Specifications

• Arc Adjustment Range: 40° to Continuous 360°
• Flow Range: 5.1 – 32.5 GPM (19,3 – 123 LPM)
• Pressure Rating: 40 – 90 PSI (2,8 – 6,2 bar)
• Precipitation Rate: .48 – 1.56 in/hr (12,2 – 39,6 mm/hr) (depending on spacing and nozzle used)
• Recommended Spacing: 40′ – 65′ (12,2 – 19,8 m)
• Radius: 43′ – 77′ (13,1 – 23,5 m)
• Nozzle Trajectory: 26°

Performance Chart

Nozzle	Pressure	Radius	Flow	Preceip in/hr
#	PSI	ft	GPM	■	▲
5	40	45	5.1	0.48	0.58
	50	47	5.9	0.51	0.62
	60	47	6.5	0.57	0.68
	70	49	7.1	0.57	0.57
10	50	53	10.6	0.73	0.87
	60	53	11.8	0.81	0.97
	70	53	12.6	0.86	1.04
	80	55	13.5	0.86	1.03
15	50	57	13.0	0.77	0.92
	60	59	14.2	0.79	0.92
	70	59	15.4	0.85	1.02
	80	63	16.5	0.80	0.96
20	60	65	18.9	0.86	1.03
	70	67	20.5	0.88	1.06
	80	69	21.9	0.89	1.06
	90	71	23.2	0.89	1.06
25	60	67	22.8	0.98	1.17
	70	71	24.8	0.95	1.14
	80	75	26.5	0.91	1.09
	90	77	26.8	0.87	1.04
30	60	67	23.7	1.02	1.22
	70	69	25.6	1.04	1.24
	80	69	27.5	1.11	1.33
	90	71	29.2	1.12	1.34
